Structure a Checkly project for a real codebase

By the end of this guide, your monitoring repository has one folder per service, shared defaults in a single config, a group per service with its own locations and variables, and a workflow that redeploys monitoring on every merge to main.

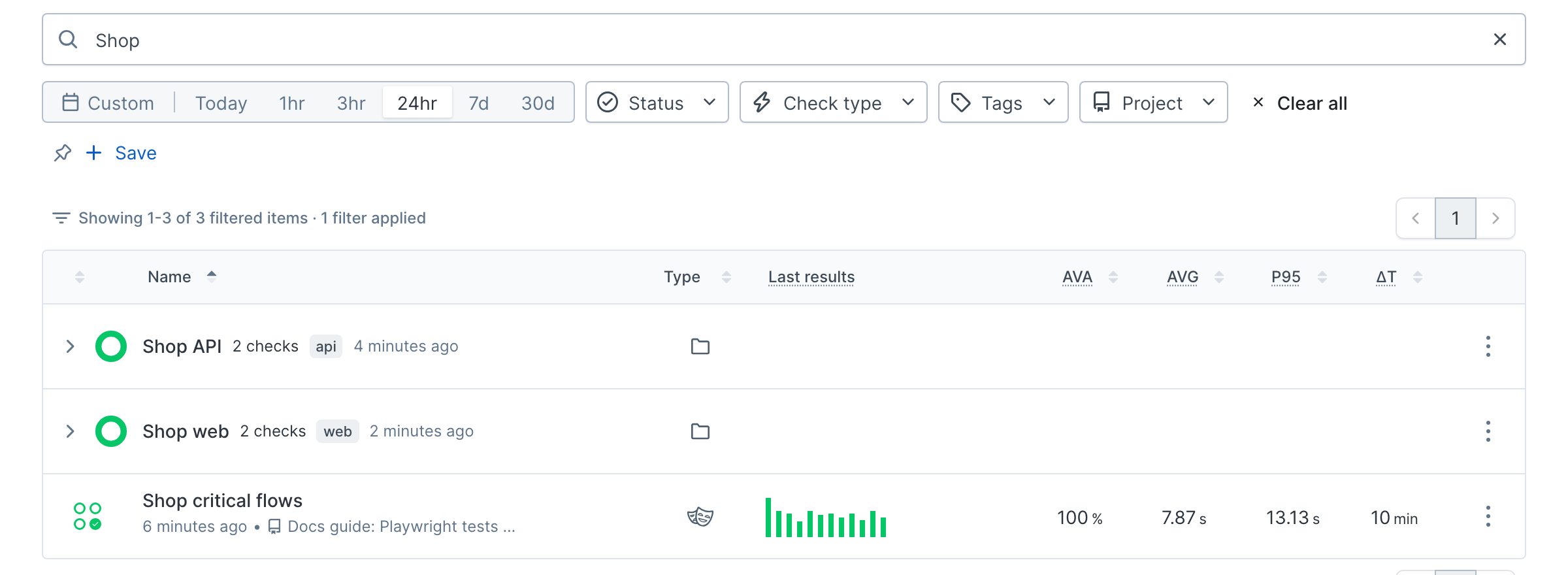

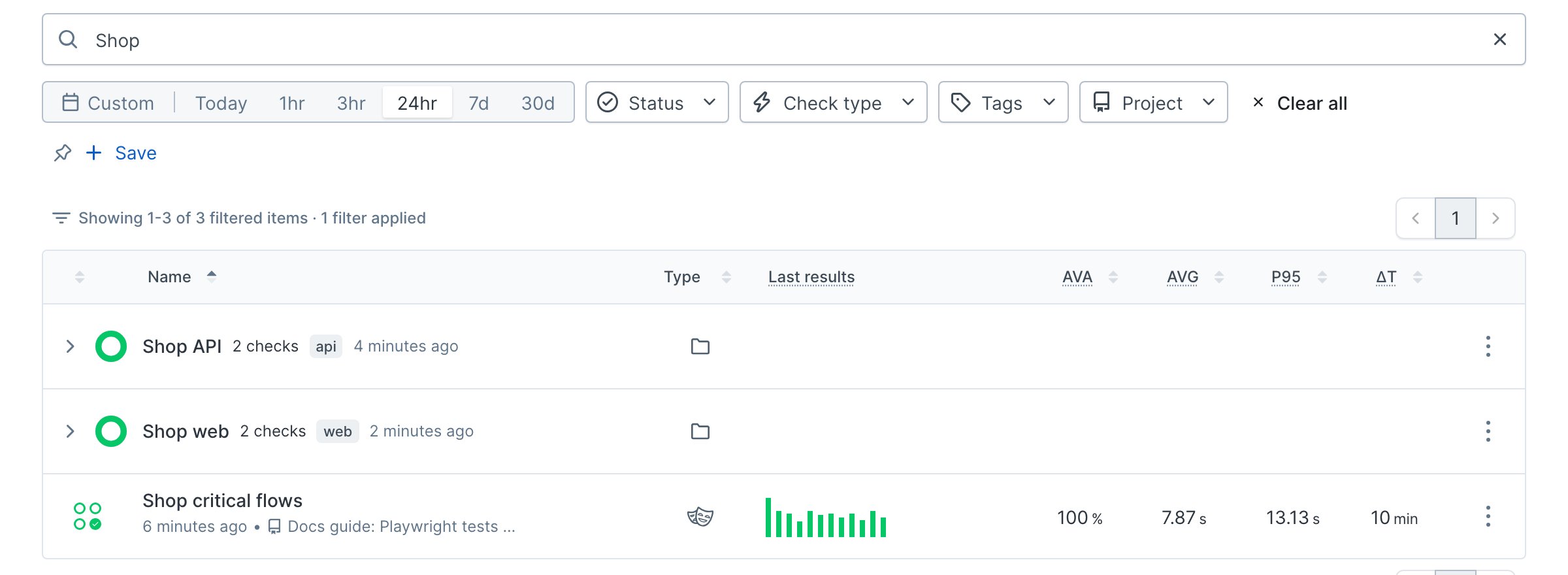

The Checkly check list filtered to Shop, showing the Shop API and Shop web groups with two checks each, tagged api and web

To follow along without your own app, clone the sample project. It monitors the Danube demo shop and its API.

Let your agent do it

To run this guide from your terminal or your coding agent, run npx checkly init in your project first. It installs the Checkly CLI and Checkly Skills for your agent. Then paste the prompt below into Claude Code, Cursor, Codex, or any agent that supports skills. It builds the same setup as this guide, proves it with npx checkly test --record, and stops for your confirmation before npx checkly deploy.

Prompt

Restructure the Checkly project in this repository so it scales with the codebase.

Goal: one folder per service under `__checks__`, shared defaults in `checkly.config.ts`, a `CheckGroupV2` per service, and a GitHub Actions workflow that deploys on merge to `main`.

Success criteria:
1. Look at the services this repository contains and propose the service folders. Ask me to confirm before moving files.
2. Move shared settings (frequency, locations, tags, alert channels) into the `checks` defaults of `checkly.config.ts`. Keep `logicalId` unchanged.
3. Put one `group.ts` in each service folder with a `CheckGroupV2`. Give the API group an `API_BASE_URL` environment variable and make its checks use `{{API_BASE_URL}}`.
4. Put credentials in secrets with `npx checkly env add <KEY> <value> --secret`, never in code.
5. Add `.github/workflows/checkly-deploy.yml` that runs `npx checkly deploy --force` on pushes to `main` that touch `__checks__/**` or `checkly.config.ts`, reading `CHECKLY_API_KEY` from secrets and `CHECKLY_ACCOUNT_ID` from variables.
6. Run `npx checkly test --record`, then show me `npx checkly deploy --preview` and wait for my confirmation before deploying.

Explain each file you changed and why.

The steps below are the same work done by hand, so you can see what the agent built and why each piece is there.

Step 1: One folder per service

The quickstart scaffold puts every check in a flat __checks__ folder. That works for four files and stops working at forty. Split it by the services in your system, so the folder tells you who owns a check and what it covers.

Project layout

checkly.config.ts
__checks__/
  alert-channels.ts
  web/
    group.ts
    homepage.check.ts
    homepage.spec.ts
    uptime.check.ts
  api/
    group.ts
    books.check.ts

Each service folder gets a group.ts and its checks. The config’s checkMatch glob finds check files at any depth, so nothing else changes when you add a folder.

Step 2: Shared settings in one config

Put the defaults every check should inherit in checkly.config.ts, and the alert channel they share next to the checks.

checkly.config.ts

import { defineConfig } from 'checkly'
import { Frequency } from 'checkly/constructs'
import { opsEmail } from './__checks__/alert-channels'

export default defineConfig({
  projectName: 'Docs guide: Structure a project',
  logicalId: 'docs-guide-structure-a-project',
  repoUrl: 'https://github.com/checkly/docs',
  checks: {
    // Defaults every check inherits unless a group or the check overrides them.
    frequency: Frequency.EVERY_10M,
    locations: ['us-east-1', 'eu-west-1'],
    tags: ['shop'],
    alertChannels: [opsEmail],
    // Where to find checks. One folder per service keeps ownership obvious.
    checkMatch: '**/__checks__/**/*.check.ts',
  },
  cli: {
    runLocation: 'eu-west-1',
  },
})

__checks__/alert-channels.ts

import { EmailAlertChannel } from 'checkly/constructs'

// One channel, attached to every check through the project defaults.
// The alerting guide tunes when and how often it fires.
export const opsEmail = new EmailAlertChannel('ops-email', {
  address: 'ops@example.com',
  sendFailure: true,
  sendRecovery: true,
  sendDegraded: false,
})

Settings resolve from the most specific level: a value on the check wins over the group, which wins over the project. Keep logicalId stable. Changing it makes Checkly treat the project as new and drops its history.

Step 3: A group per service

A group holds the settings that are true for a whole service and lets you run or mute that service as a unit. The storefront runs from three regions so a regional CDN problem shows up as a single-location failure.

__checks__/web/group.ts

import { CheckGroupV2 } from 'checkly/constructs'

// The storefront: user-facing pages. Runs from three regions so a
// regional CDN problem shows up as a single-location failure.
export const webGroup = new CheckGroupV2('shop-web', {
  name: 'Shop web',
  tags: ['web'],
  locations: ['us-east-1', 'eu-west-1', 'ap-southeast-1'],
  runParallel: true,
})

A check joins the group through its group property. The uptime monitor also overrides the project’s ten-minute default, because a URL monitor is cheap enough to run every minute.

__checks__/web/uptime.check.ts

import { Frequency, UrlAssertionBuilder, UrlMonitor } from 'checkly/constructs'
import { webGroup } from './group'

new UrlMonitor('shop-homepage-uptime', {
  name: 'Homepage uptime',
  group: webGroup,
  // Overrides the project default: uptime is cheap, run it more often.
  frequency: Frequency.EVERY_1M,
  degradedResponseTime: 3000,
  maxResponseTime: 10000,
  request: {
    url: 'https://danube-web.shop/',
    followRedirects: true,
    assertions: [UrlAssertionBuilder.statusCode().equals(200)],
  },
})

The API group carries a variable instead of locations. Every API check in the folder reads {{API_BASE_URL}}, so moving the API to a new host is a one-line change.

__checks__/api/group.ts

import { CheckGroupV2 } from 'checkly/constructs'

// The backend API. The base URL lives on the group, so every API check
// in this folder reads {{API_BASE_URL}} instead of repeating the host.
export const apiGroup = new CheckGroupV2('shop-api', {
  name: 'Shop API',
  tags: ['api'],
  environmentVariables: [
    { key: 'API_BASE_URL', value: 'https://danube-web.shop/api' },
  ],
})

__checks__/api/books.check.ts

import { ApiCheck, AssertionBuilder } from 'checkly/constructs'
import { apiGroup } from './group'

new ApiCheck('shop-api-books', {
  name: 'Books catalog',
  group: apiGroup,
  degradedResponseTime: 2000,
  maxResponseTime: 5000,
  request: {
    method: 'GET',
    url: '{{API_BASE_URL}}/books',
    assertions: [
      AssertionBuilder.statusCode().equals(200),
      AssertionBuilder.headers('content-type').contains('application/json'),
      AssertionBuilder.jsonBody('$.length').greaterThan(0),
      AssertionBuilder.jsonBody('$[0].title').notEmpty(),
    ],
  },
})

Credentials go in secrets, not in code. Add one globally with npx checkly env add API_TOKEN "..." --secret and read it the same way, as {{API_TOKEN}} in API checks or process.env.API_TOKEN in scripts. See environment variables and secrets.

Run the project on Checkly’s infrastructure to confirm every check parses and passes.

Terminal

npx checkly test

Terminal

Parsing your project... ✅
Validating project resources... ✅
Bundling project resources... ✅
Uploading Playwright tests... ✅

Running 3 checks in eu-west-1.

__checks__/api/books.check.ts
  ✔ Books catalog (217ms)
__checks__/web/homepage.check.ts
  ✔ Homepage renders (5s)
__checks__/web/uptime.check.ts
  ✔ Homepage uptime (216ms)

3 passed, 3 total

After you deploy in the next step, each group gets its own page with the checks it owns, their combined availability, and a button to run them all at once.

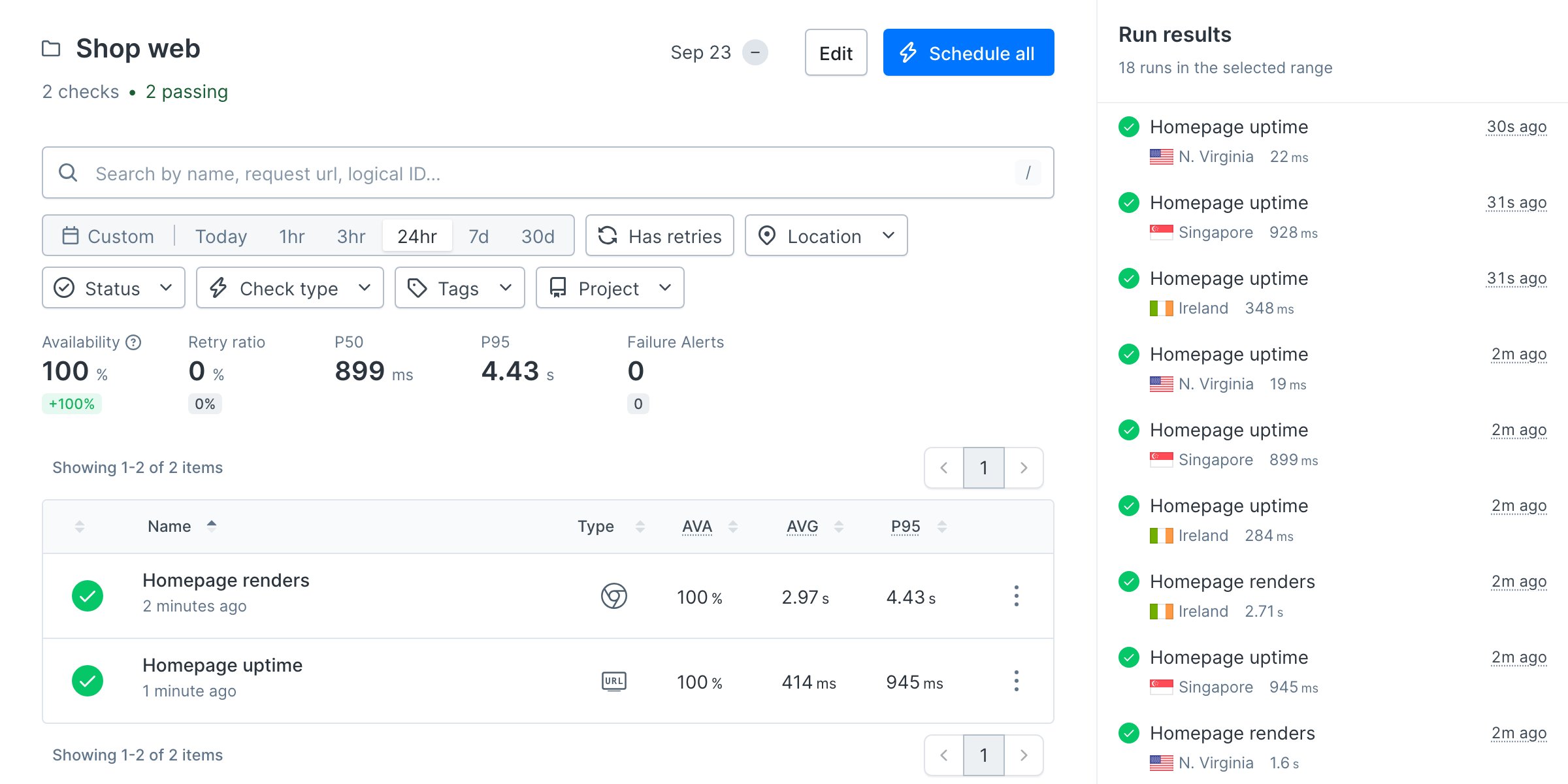

The Shop web group page in Checkly showing two passing checks, availability and response time stats, and recent run results from three locations

Step 4: Deploy from CI on every merge

Preview what the first deploy creates, then deploy once from your machine.

Terminal

npx checkly deploy --preview

Terminal

Create:
    EmailAlertChannel: ops-email
    ApiCheck: shop-api-books
    BrowserCheck: shop-homepage
    UrlMonitor: shop-homepage-uptime
    CheckGroupV2: shop-api
    CheckGroupV2: shop-web

Terminal

npx checkly deploy

From here on, let CI do it. The workflow below redeploys the project whenever a merge to main touches monitoring code. Checkly diffs the project against what is deployed and applies only the change, so re-running it is safe.

.github/workflows/checkly-deploy.yml

name: Deploy Checkly monitoring

# Every merge to main that touches monitoring code redeploys the project.
# Checkly diffs the project against what is deployed and applies the change.
on:
  push:
    branches: [main]
    paths:
      - '__checks__/**'
      - 'checkly.config.ts'
      - 'package-lock.json'

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4
        with:
          node-version: 22
          cache: npm
      - run: npm ci
      - run: npx checkly deploy --force
        env:
          CHECKLY_API_KEY: ${{ secrets.CHECKLY_API_KEY }}
          CHECKLY_ACCOUNT_ID: ${{ vars.CHECKLY_ACCOUNT_ID }}

Store CHECKLY_API_KEY as a repository secret and CHECKLY_ACCOUNT_ID as a repository variable. Both come from your Checkly settings, described in CLI authentication. The --force flag skips the interactive confirmation.

This workflow deploys after a merge. Running npx checkly test on every pull request, so a broken check never reaches main, is the subject of the checks on every deploy guide.

Verify it works

Add a check the way a teammate would: one new file in the service folder, nothing else.

__checks__/api/book-detail.check.ts

import { ApiCheck, AssertionBuilder } from 'checkly/constructs'
import { apiGroup } from './group'

new ApiCheck('shop-api-book-detail', {
  name: 'Book detail',
  group: apiGroup,
  degradedResponseTime: 2000,
  maxResponseTime: 5000,
  request: {
    method: 'GET',
    url: '{{API_BASE_URL}}/books/1',
    assertions: [
      AssertionBuilder.statusCode().equals(200),
      AssertionBuilder.jsonBody('$.title').equals('Haben oder haben'),
    ],
  },
})

The preview shows exactly one new resource. Everything else is untouched.

Terminal

npx checkly deploy --preview

Terminal

Create:
    ApiCheck: shop-api-book-detail

Update and Unchanged:
    EmailAlertChannel: ops-email
    ApiCheck: shop-api-books
    BrowserCheck: shop-homepage
    UrlMonitor: shop-homepage-uptime
    CheckGroupV2: shop-api
    CheckGroupV2: shop-web

Commit the file and merge. The workflow deploys it, and the new check appears under Shop API with the group’s variable and the project’s alert channel already applied.

Turn your Playwright tests into monitors: the tests you already have become the checks in your web folder.
